Product Details

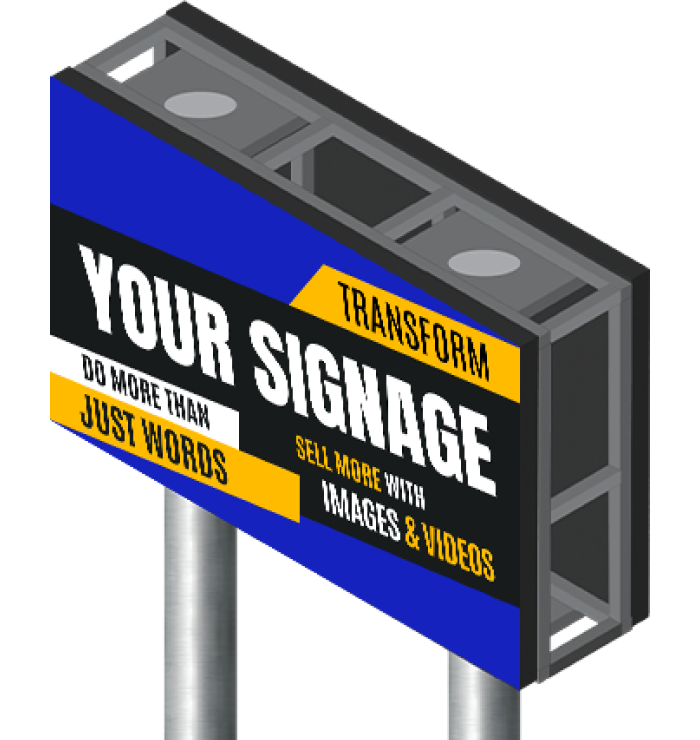

For installations requiring both a full-perimeter frame and vertical pole support, our Tubular Frame with Poles system provides the ultimate foundation. This complete solution combines our engineered tubular frame with heavy-duty poles — giving you a ready-to-install structural system for freestanding LED signs.
What It Is
This system integrates two critical components:
-
The Pole(s): One or two heavy-duty metal poles that serve as the primary vertical support. The poles are provided for the customer to embed in a concrete foundation on-site.
-

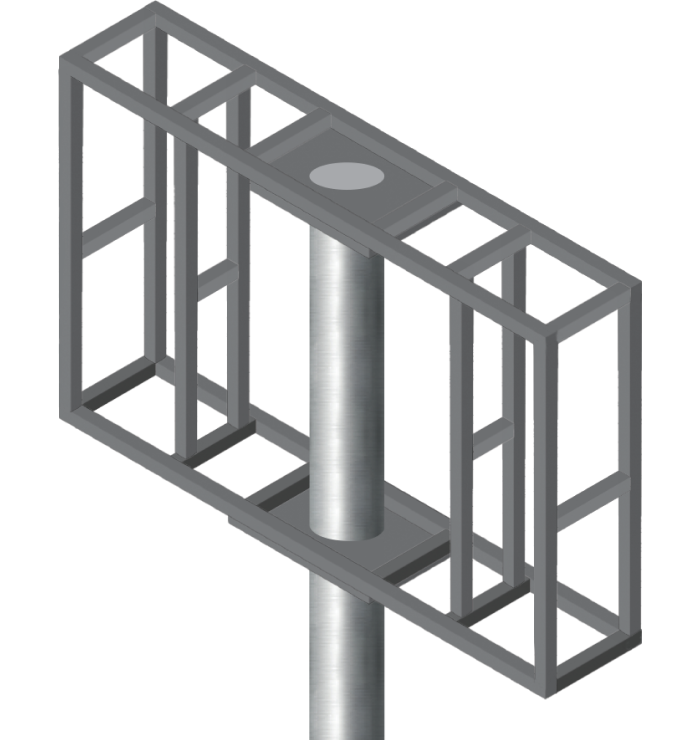

The Tubular Frame: A full-perimeter metal frame that surrounds and supports the LED sign cabinet. The frame attaches to the pole(s), creating a rigid, stable structure.
Together, they form a complete system where the tubular frame distributes loads evenly to the poles, which transfer forces deep into the ground.
Standard Pole Specifications
| Specification | Detail |
|---|---|
| Height Above Grade | Maximum 10 feet (from ground level to the bottom of the sign cabinet/frame) |
| Recommended Embedment Depth | Minimum 6 feet (below grade, set in a concrete foundation) |
| Total Pole Length | 16+ feet (6 ft below grade + 10 ft above grade + additional length for frame connection as required) |
Note: Final embedment depth is site-specific and should be determined by a local engineer or installer based on soil conditions and wind-load requirements.
Foundation Responsibility
The poles are supplied ready for customer installation. The customer or their installer is responsible for:
-
Digging the hole
-
Setting the poles plumb and level
-
Pouring the concrete foundation
-
Ensuring embedment depth meets local codes
What's Included
| Component | Description |
|---|---|
| Tubular Frame | Full-perimeter metal frame, custom-fabricated to your sign dimensions |
| Pole(s) | Heavy-duty metal poles, cut to your specified height + embedment length |
| Frame-to-Pole Connections | All brackets and hardware for attaching frame to poles |
| Mounting Hardware | Brackets and fasteners for attaching sign to frame |
| Engineering | Structural calculations and stamped drawings (as required) |
Note: Concrete, excavation, and installation labor are provided by the customer or their contractor.
Frame Tier Summary
| Tier | Best For | Size Range | Starting Price |
|---|---|---|---|
| Standard | Medium-format signs, standard wind zones | Up to 50 sq ft | $5,500 |
| Heavy-Duty | Big-format signs, enhanced wind-load requirements | Up to 100 sq ft | $12,000 |
| Large-Format Extreme | Digital billboards, extreme conditions | 120+ sq ft | Up to $23,000 |
Engineered to Your Specs
Each Tubular Frame is custom-designed based on:
-
Sign dimensions and weight (e.g., 200–400+ lbs)
-
Orientation (portrait or landscape)
-
Installation height and location
-
Pole length and configuration
-
Local wind-load requirements
-
Mounting surface type and span between supports
