HD double-side ready programmable wireless gas LED sign
-Modular LED
Do businesses need digital billboards?
Digital advertising is one of the best ways to promote your business. You can use the Gr8img LED sign as a tremendous onsite digital marketing channel that converts your passersby to customers. You can sell more when you use the Gr8img LED sign to show more people who you are, what you do, and how you help.

Shop Drawings
Technical specifications

Screen Size : | 4 feet x 6 feet (Actual: 50.4-in * 75.6-in) |
Display Visibility : | Single Sided / Double Sided |
Pixel density : | 2304 Pixels Per Module |
Display Resolution : | 192 pixels x 288 pixels |
LED Configuration : | DIP & SMD 3 in 1 |
Design : | XIGNZ Modular LED |
Media Support : | Images, Videos, Slides, and more. |
Brightness : | Standard 7000 Nits / High Brightness 8000 Nits |
Power consumption : | Max 2280 watts per side |
Sensors : | Temperature and Brightness |
Communication : | LAN, WIFI, 4G (Optional) |
Weight : | 240 pounds per side |

Screen Size : | 4 feet x 6 feet (Actual: 50.4-in * 75.6-in) |
Display Visibility : | Single Sided / Double Sided |
Pixel density : | 1600 Pixels Per Module |
Display Resolution : | 160 pixels x 240 pixels |
LED Configuration : | SMD 3 in 1 |
Design : | XIGNZ Modular LED |
Media Support : | Images, Videos, Slides, and more. |
Brightness : | Standard 7500 Nits / High Brightness 8500 Nits |
Power consumption : | Max 2280 watts per side |
Sensors : | Temperature and Brightness |
Communication : | LAN, WIFI, 4G (Optional) |
Weight : | 240 pounds per side |

Screen Size : | 4 feet x 6 feet (Actual: 50.4-in * 75.6-in) |
Display Visibility : | Single Sided / Double Sided |
Pixel density : | 1024 Pixels Per Module |
Display Resolution : | 128 pixels x 192 pixels |
LED Configuration : | SMD 3 in 1 |
Design : | XIGNZ Modular LED |
Media Support : | Images, Videos, Slides, and more. |
Brightness : | Standard 8500 Nits / High Brightness 10000 Nits |
Power consumption : | Max 2280 watts per side |
Sensors : | Temperature and Brightness |
Communication : | LAN, WIFI, 4G (Optional) |
Weight : | 240 pounds per side |

Screen Size : | 4 feet x 6 feet (Actual: 50.4-in * 75.6-in) |
Display Visibility : | Single Sided / Double Sided |
Pixel density : | 400 Pixels Per Module |
Display Resolution : | 80 pixels x 120 pixels |
LED Configuration : | DIP Real Pixels |
Design : | XIGNZ Modular LED |
Media Support : | Images, Videos, Slides, and more. |
Brightness : | Standard 9000 Nits / High Brightness 11500 Nits |
Power consumption : | Max 2280 watts per side |
Sensors : | Temperature and Brightness |
Communication : | LAN, WIFI, 4G (Optional) |
Weight : | 240 pounds per side |
Software Capabilities
Our LED digital signage comes with a plethora of flexibility. The built-in software helps users find the easiest ways to maximize the viewing experience for their audience. Explore the cornucopia of benefits!











After unpacking your X Series LED Sign, arrange your sign cabinets in sequence so that a clear hole aligns with threaded hole.

Insert the bolt through the clear hole and screw it into the threaded hole to hold the signs in position. Each cabinet has two holes on the side.

Use the provided socket to fasten the upper and lower bolts on the side each cabinet.

Place the X Clip in the center of every four cabinets and screw in the bolts to hold the clip in position.

Position the brackets on the back of the sign and use the provided bolts to secure the brackets to the sign (Connect brackets as needed for install).

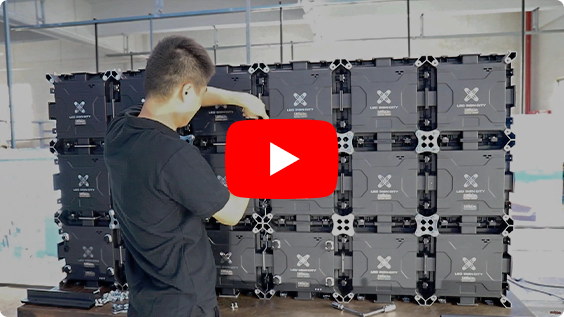

Your LED Sign may arrive in preconfigured sections that you are required to connect together to assemble the required dimensions. Below we will walk you through the steps required to assemble your display and prepare for installation.

Your assembled sign should resemble the illustration above.
Wiring instructions

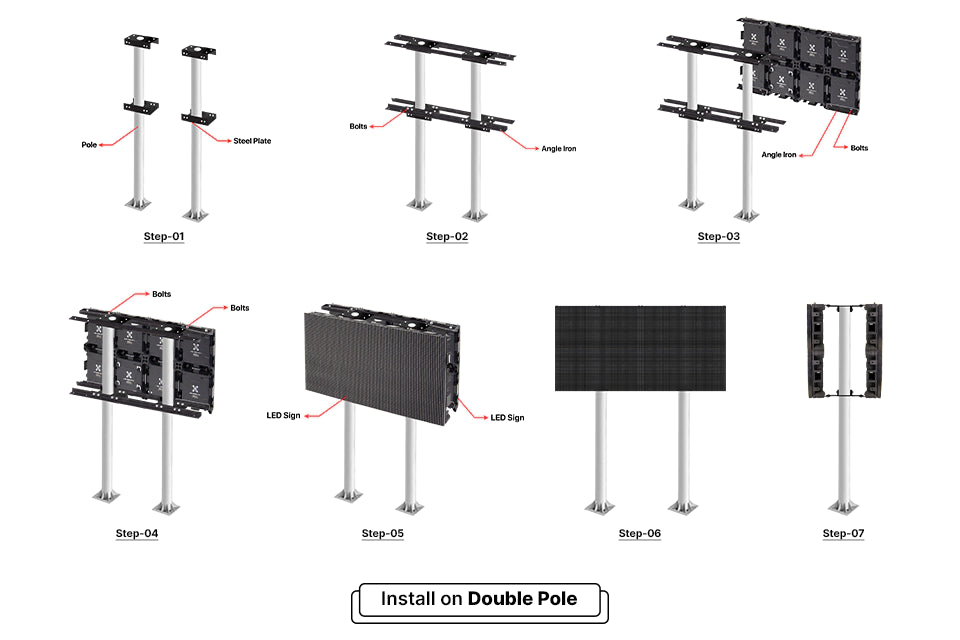

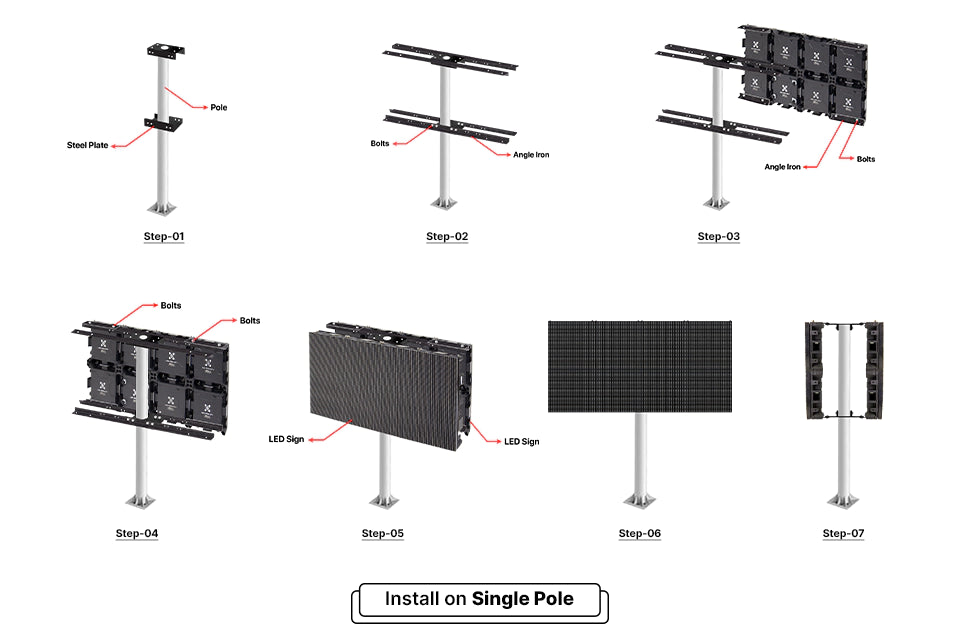

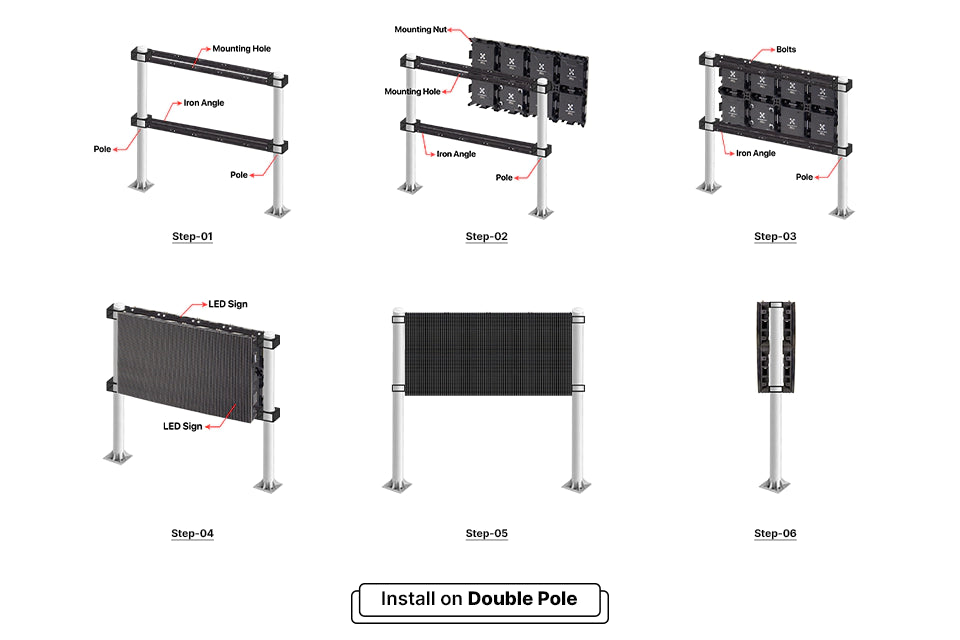

Example of step by step installation
Wall Installation
Want to mount the LED sign on a wall? Customize the position of the mounting points to ensure a perfect fit. Just follow the simple steps.


What's in the box

Power Cable

Signal cable

Brightness Sensor

Antenna Cable

M8 16 MM Bolts


Wireless CPE Antenna

Ethernet Cable

L Brackets & M10 20 MM Bolts

X Brackets & M10 20 MM Bolts

LED Controller
What customers like about LED Sign City
What customers say after choosing LED Sign City
Frequently Asked Questions
It will take fewer than 30 mins if you are a pro at assembling all the Swedish furniture and love to follow the installation manual However, if you dread following an installation guide and have little to no experience in assembling tech and furniture, it can take up a better chunk of your day
Reach out to us first, we are always in touch with the super talented installers across the state. Or you can risk a teetering glass display and re-tighten bolts of the sign while it hangs down from the sky.
We love preparing ahead of time and anticipating your needs. That's why we have an online support desk and have shared an official phone number that will directly connect you to a representative.
Yes, we do! To help local businesses, we have a low-interest financing option. Give us a call to find out how easily you can secure one.
Just scroll down to the bottom of the page, and follow the hyperlink to "Dealer sign up"
Reach out to the local Public Works and Engineering department of your city for a zoning permit.
Must be approved by the city planning department, adhere to building codes, be mindful of light pollution, content must not violate any local or state laws or regulations, and should be well maintained.
Guarantee provides replacements for defective components within first two years!
