When Does an LED Sign Need a Transformer?

Digital outdoor and indoor displays from LED Sign City are designed to operate directly on 110 V or 220 V, which means in many cases they can be connected straight to the available circuit. But there are important situations where a transformer is still required to ensure compatibility, reliability, and safety.

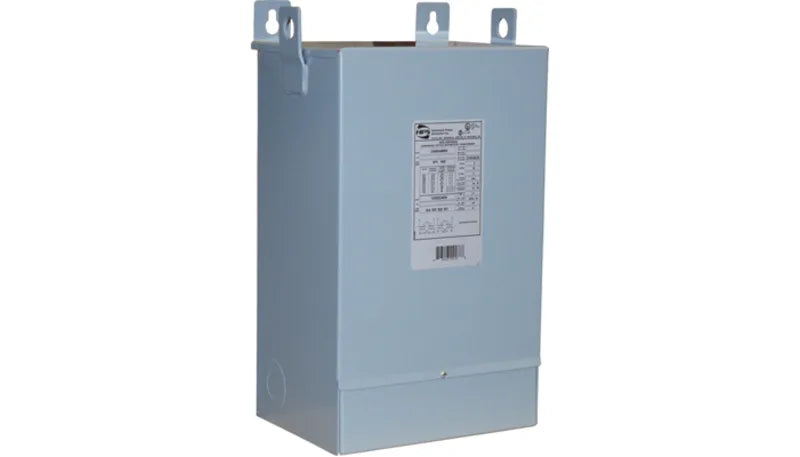

One commonly used unit in signage projects is the Hammond Power Solutions C1F005WES, a 5 kVA single-phase encapsulated transformer. With its wide input range and durable construction, it covers many of the scenarios where a transformer becomes essential.




Situations Where a Transformer is Needed

1. Supply Voltage Mismatch

If the site only provides 208 V or 277 V service, a sign designed for 110 V or 220 V needs a step-down transformer.

  • The C1F005WES accepts 120 / 208 / 240 / 277 V primary inputs and delivers a stable 120 / 240 V secondary output, making it suitable in mixed-service environments.


2. Electrical Isolation

A transformer provides isolation between the building’s electrical system and the sign’s electronics, which can:

  • Reduce electrical noise that might affect LED drivers

  • Protect against surges or unstable power

  • Improve safety for outdoor and mobile signs

The C1F005WES is an encapsulated NEMA 3R unit, meaning its core and coil are sealed against moisture, dust, and airborne contaminants — a useful feature for signs exposed to the elements.


3. Mobile or Trailer-Mounted Signs

Trolley and trailer signs often connect to different power sources — a generator in one location, a 240 V circuit at another, or even 277 V at a commercial property.

  • The multi-tap design of the C1F005WES makes it flexible for mobile applications, ensuring the sign always receives the correct voltage no matter the source.


4. Load Distribution for Larger Signs

While a small single-sided sign may run fine directly from the mains, double-sided or mid-sized signs can draw several kilowatts continuously.

  • A 5 kVA rating (≈ 3.6 kW continuous usable load after derating) provides enough capacity for double-sided signs in the 2×3 ft to 2×5 ft range, or single-sided signs up to about 38 ft² of display area.


Technical Specifications: Hammond C1F005WES

Attribute Value
Manufacturer Hammond Power Solutions
Series Fortress™
Part Number C1F005WES
Power Rating 5 kVA (single-phase)
Primary Voltage 120 / 208 / 240 / 277 VAC
Secondary Voltage 120 / 240 VAC
Frequency 60 Hz
Configuration NEMA 3R Encapsulated
Termination Lead Wires
Mounting Panel mount with keyhole slots & wall template
Weight ~108 lb
Standards cULus Listed; meets NEMA & ANSI requirements

When a Transformer is Not Required

  • Small single-sided LED signs that directly match the available 110 V or 220 V circuit.

  • Installations where the utility supply already matches the sign’s input range, and additional isolation is not a concern.


Summary

Even though many LED signs are designed to run on 110 V or 220 V, a transformer like the HPS C1F005WES is required when:

  • The site provides 208 V or 277 V service

  • Electrical isolation and protection are needed

  • The sign is mobile and may plug into different sources

  • The load is mid-sized or double-sided, benefiting from stable distribution

The C1F005WES provides the flexibility of multi-voltage inputs, rugged encapsulation for outdoor use, and a 5 kVA rating well-suited for powering mid-sized and trolley-mounted LED signs.
