Frequently Asked Questions – 3' x 8' LED Sign

1. What are the specifications of the 3' x 8' LED sign?

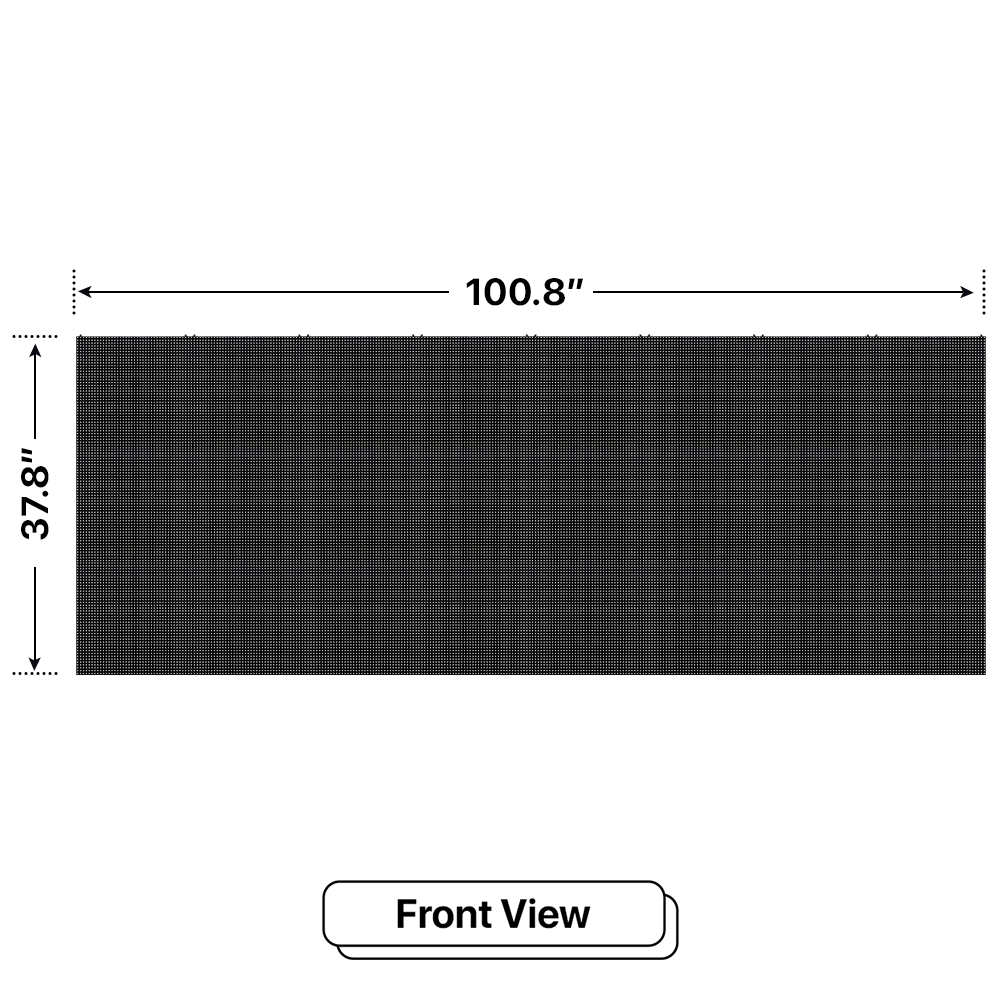

• Size: 3 feet high x 8 feet wide
• Display Type: Full-color LED, capable of text, images, and videos
• Message Duration: Can display static or rotating messages, customizable based on needs
• Typical Lines of Text: 3-5 lines, depending on font size



2. What power requirements does this sign have?

The sign operates on a wide voltage range of 110V–264V and automatically detects the input voltage for proper operation.



• For 110V single-phase power: The sign draws approximately 21 AMPS per side.
• For 208V single-phase power: The sign draws approximately 11 AMPS per side.
• For 220V single-phase power: The sign draws approximately 10 AMPS per side.

3. What are the mounting options for this sign?

The 3' x 8' sign supports various installation methods with mount points every 10 inches both vertically and horizontally across the back.



• Typically, 4-6 mount points are required for secure installation.
• We provide mounting details and sample installation images upon request.

4. Where is the electrical connection located, and is there a wiring schematic available?

Yes, a wiring schematic is provided above. This diagram details the power entry location, wiring connections, and power requirements to ensure proper setup. If additional assistance is needed, our support team can provide guidance during installation.

5. What are the communication options for the sign?



The sign comes standard with WiFi connectivity, allowing you to extend your existing network to the sign.
If cellular connectivity is required, we offer a modem that supports Verizon and other carriers:

• Monthly data service (if provided by us): $40 per month
• Option to use your own cellular provider

6. What is the recommended letter height for optimal visibility?

For readability at 40 mph from 80 to 200 feet, a letter height of 8-12 inches is ideal.
This ensures clear visibility and easy readability for drivers at various distances.

7. Should I choose the Beacon 8mm or Spotlight 10mm model?

• For primarily text-based content: The Spotlight 10mm is recommended for cost savings while maintaining excellent visibility.
• For enhanced image and video clarity: The Beacon 8mm provides a higher resolution but at a slightly higher cost.



Both models include a smart brightness sensor that automatically adjusts brightness levels based on daylight and nighttime conditions.
